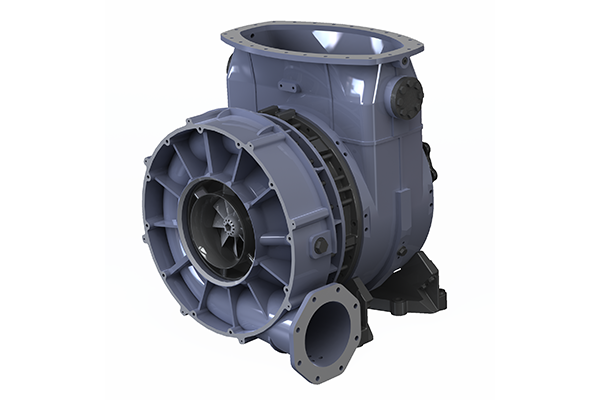

The CTA axial flow turbocharger comprises a single stage centrifugal compressor and an axial turbine with inboard film bearings. It is designed for four-stroke medium-speed and two-stroke low-speed diesel engines with a power output range from 3000 kW to 6500 kW.

Features

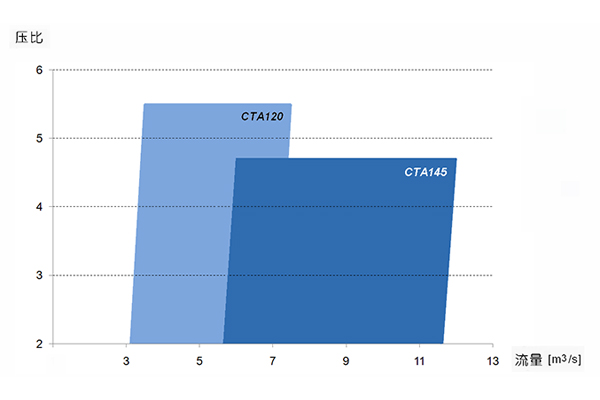

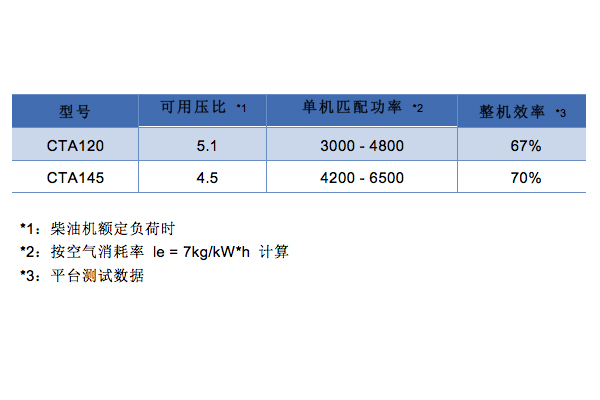

> Offering pressure ratio as high as 5.5, and turbocharging efficiencies up to 70% with wide flow range；

> Serial products, applicable for different diesel engines;

> Coated film bearing with good reliability, long times between replacements;

> Compact and less parts, convenience for assembly and maintenance;

> Applicable for heavy fuel oil and dual-fuel engines;

> Special design for sequential turbocharging system(Option)
